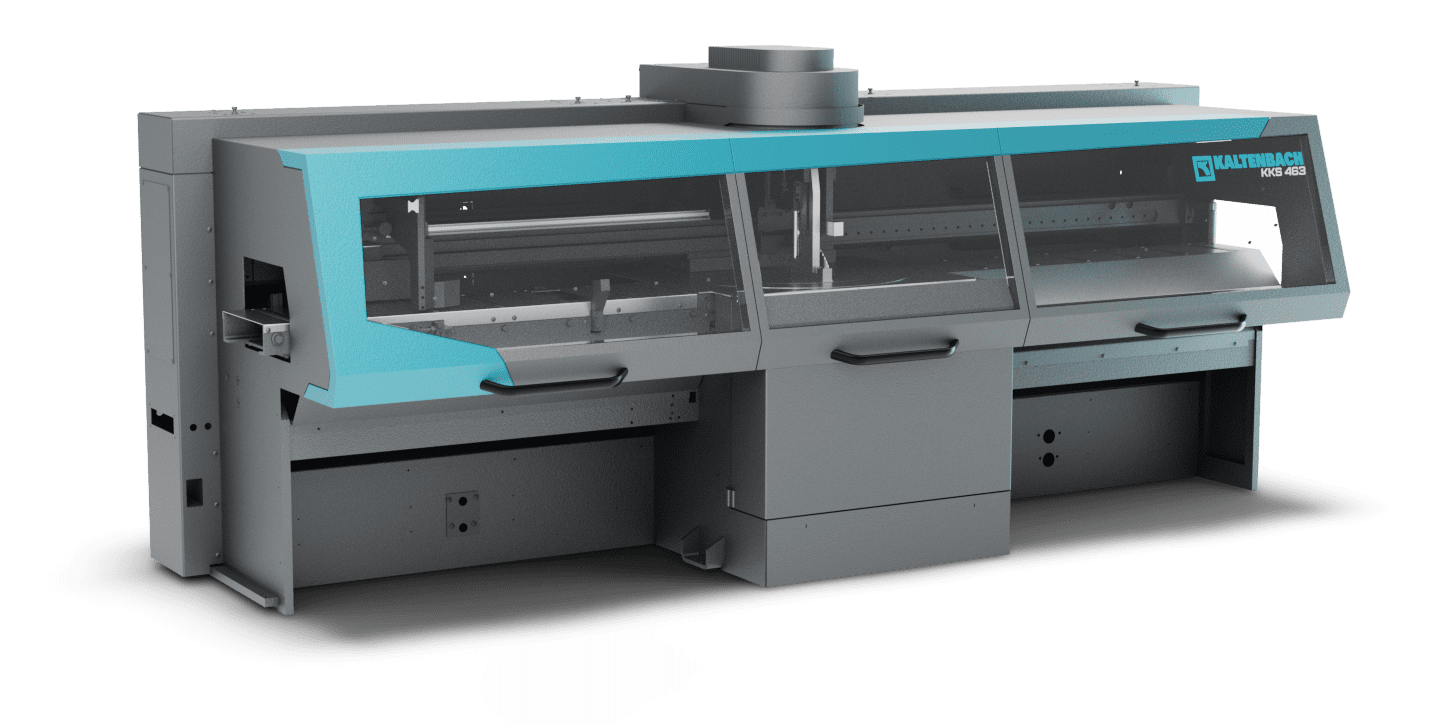

KKS 463 NA
Fully-automatic universal circular saw for profiles, solid materials and tubes
KKS 463 NA BENEFITS AT A GLANCE
- Automatic processing of flat, angle and solid materials
- Multiple front and back cuts
- Automatic calculation of the cutting speed and saw feed rate
- Electronic cutting-height adjustment
- Rapid reverse motion of the saw blade
- Minimal end-piece lengths
- Automatic cut-off sorting
- Simple operation and programming via touch screen
FEATURES
Precise Cuts
Robust, powerful drive with hardened and ground helical gears
Smooth operation
Swiveling vertical clamping device
Swiveling vertical clamping device for mitre cuts
For optimal material clamping and shortest remnant parts length
Automatic zero-point recognition
Laser light barrier for the cut identification
High degree of automation
Automatic mitring
Automatic, program-controlled processing of cutting sequences
High degree of automation
Measuring cut-off gripper as additional clamp while cutting
Automatic sorting of front cuts, end pieces and finished pieces
Machine operation with the most advanced software
Machine operation via a keyboard display integrated into the control console
Input of cutting angle and cutting speed
Easy data import and export
Materials database with factory settings
Production data report and numerous evaluation possibilities
Remote diagnosis
High cutting capacity
Automatic calculation of the feed rate and cutting speed
Feed motion via hydraulic cylinder
Workpiece clamping
Infeed and outfeed sides individually controllable
Clamping-pressure reduction through reduction valve
Clamping-path optimization through integrated measuring system
Flexible when it comes to material measurement, especially with large areas
Optimum clamping for miter cuts
Automated sawing process
Efficient processing of medium and large batches
Minimal end-piece lengths due s pecial gripper design
Multiple-stroke for cutting lengths up to 9,999 mm
High-precision positioning via servomotor and ballscrew spindle
Accurately directed via linear guides
Shortest cutting times
Saw blade feed up to 2,000 mm per minute for thin-walled tubes and profiles
Dynamic feed control
Waste minimization and productivity safeguarding
Automatic material height measurement and material width measurement (optional)
Machine stops if the material does not correspond to the programmed data
Length correction with miter cuts (only with optional width measurement)
Short cycle times
Separate roller-conveyor drive of magazine and the roller conveyor of automatic feed
Bar changeover takes place outside of the cycle time
New material bar is moved to starting position while another bar is being processed
Minimum quantity lubrication
Virtually Dry Workpiece
Optimum tool lubrication while sawing profiles
Installable in addition to cooling water unit
Level monitoring of minimal and flood lubricants
Long saw blade life
Trouble-Free Use in Different Climate Zones
Control cabinet integrated into the machine with cooling and heating unit
Cooling when > 35° C
Heating when < 5° C
High availability of electronic components even with extreme ambient temperatures
Savings in operating steps
Up to three cuts possible on front and back sides of the bar (rectangular profile)
Push-off brush for removal of gusset
Drill axis KDV
highest possible level of automation
The drill spindle is controlled fastly and precisely over a ball screw via servomotor
TECHNICAL DATA
| Drive performance | kW | 5,2 resp. 9,5 |
| Weight | kg | approx. 4.900 |
| Supply and discharge side | Sawing | |
| Sawblade | Ø mm | 460 |
| Cutting speed | m/min | 7-60 resp. 15-120 |
| Sawblade feedrate | mm/min | 0-1.000 |
| Rapid advance/return movement | mm/min | 3.500 |
| Working Max | mm | 153 |
| Working range Square | mm | 140 |
| Working range Flatmaterial | mm | 250x75 |
| Working range Roundmaterial | mm | 153 |
| working range Profile | mm | 140x140 |
| Mitre range | 30°-90°-30° | |
| Tools | HSS-Tools | |
| Material class | automatic outfeed | |
| automatic sorting of trim and remnant cuts | ||
| automatic infeed | ||
| Full-Automatic | ||
| Material class | Stainless Steel | |
| Steel | ||
| Working processes | Profiles | |
| Single stroke length | mm | 1.500 |
| Multiple stroke length | mm | 9.999 |
