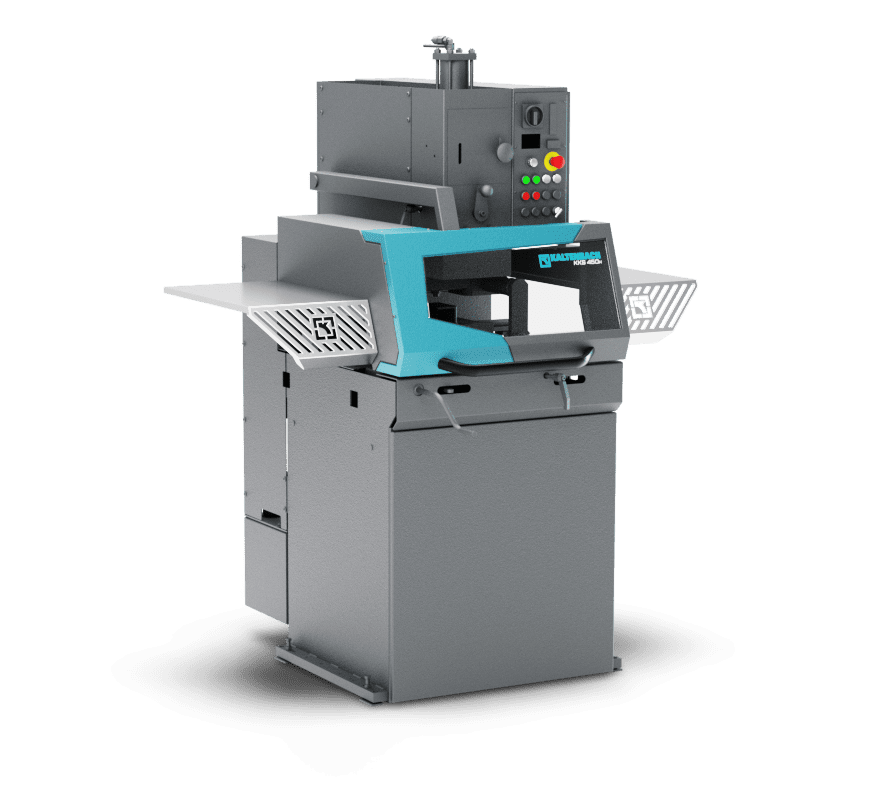

KKS 450 H
Semi-automatic mitre saw suitable for almost all steel qualities
KKS 450 H BENEFITS AT A GLANCE
- Suitable for almost all steel qualities
- Turntable for mitre cuts
- Minimal set-up effort when changing materials
- Modern operation via control panel with plain-text display
- Clamping, sawing, reverse motion, opening – touch of a button
- Ideal for single cuts and processing small batches
- Good accessibility for saw-blade changes and maintenance work
- Space saving installation
FEATURES
Panel
Simple operation via input panel
Rotary table for mitre cuts
Pivoting range 180°
Easy adjustment (optional CNC controlled)
Workpiece clamping
Vertical long-stroke clamping cylinder
Large scale pressure piece for secure clamping on both sides of the saw blade
Hand crank for pre-adjustment
Additional workpiece clamping
Horizontal clamping device to the right and left of the saw blade (option)
Clamping aid for thin-walled profiles
Additional clamping for example sawing of acute angles
Precise straight and mitre cuts
Stable contact surface for precise cuts
Adjustable forwards and backwards
Individual feed adjustment
Universal, infinitely-variable adjustment, even during the sawing process
Lower feed rate with stainless steels, higher feed rate for tubes
Feed movement via hydraulic cylinder
Minimum quantity lubrication
Virtually dry workpiece
Optimum tool lubrication
Can be installed in addition to floot coolant device
Disposal of lubricant unnecessary
Long blade life
Precise cuts
Robust, powerful drive with hardened and ground helical gears
Smooth operation
Material related cutting speed
Adaptable to the material
Two cutting speeds as standard
Infinitely-variable adjustment of cutting speed
Toothed-belt drive and frequency regulator for infinitely-variable cutting speed (opt.)
Optimum adjustment of cutting speed to material quality
Long blade life
TECHNICAL DATA
| Drive performance | kW | 1.8/2.7 |
| Dimensions (L x W x H) | mm | 1320 x 1020 x 2000 |
| Weight | kg | approx. 1.050 |
| Supply and discharge side | Sawing | |
| Sawblade | Ø mm | 450 |
| Cutting speed | m/min | 11/22 13/26 15/30 |
| Sawblade feedrate | mm/min | 0-1.000 |
| Rapid advance/return movement | mm/min | 3.300 |
| Working Max | mm | 150 |
| Working range Square | mm | 140 |
| Working range Flatmaterial | mm | 330 x 40 |
| Working range Roundmaterial | mm | 150 |
| Working range min. | mm | 10 x 10 |
| Mitre range | 0° - 90° - 0° | |
| Tools | HSS-Tools | |
| Material class | Stainless Steel, | |
| Steel | ||
| Working processes | Solid Material | |
| Profiles |
