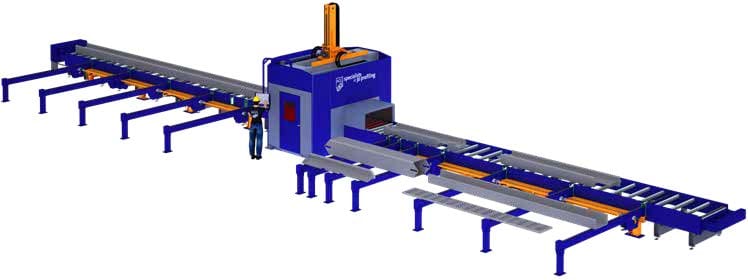

KC 1201
Beam Cutting Machine
KC 1201 BENEFITS AT A GLANCE
- 100x100mm - 600x400mm (3.9x3.9" - 23.6x15.7")
- 100x50mm - 1100x400mm (3.9x2" - 43.3x15.7")
- 620x430mm - 1220x430mm (3.7x1" - 48x16.9")
- 95x55mm - 1220x430mm (3.7x2.2" - 48x16.9")
- 100x50mm - 1100x400mm (3.9x2" - 43.3x15.7")
- 75x75mm - 550x550mm (3x3" - 21.7x21.7")
- Plasma Cutting
- Marking
- CAD Connection

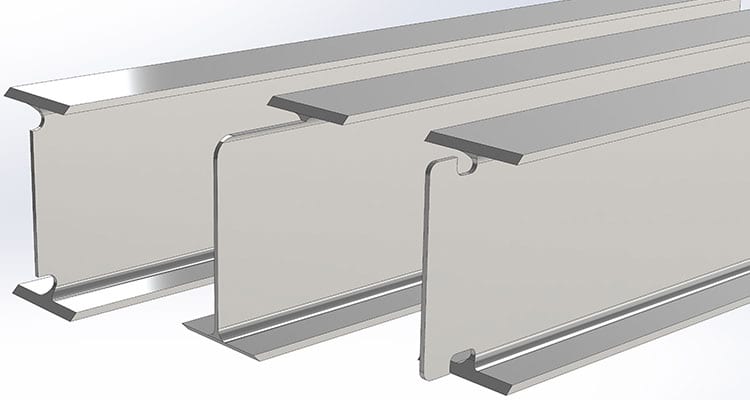

3D Profiling shapes

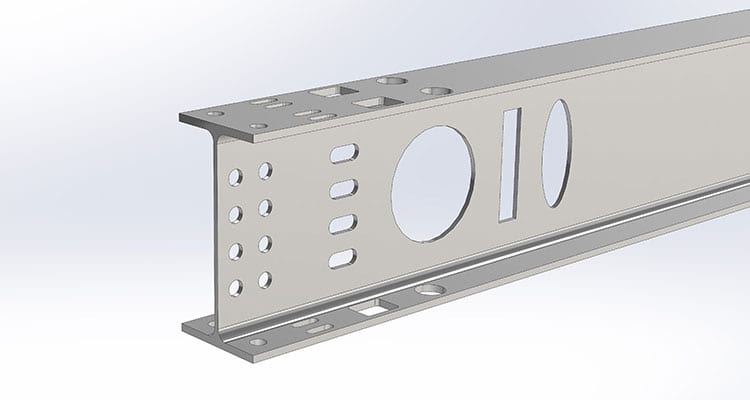

Beam holes
To cut bolted holes

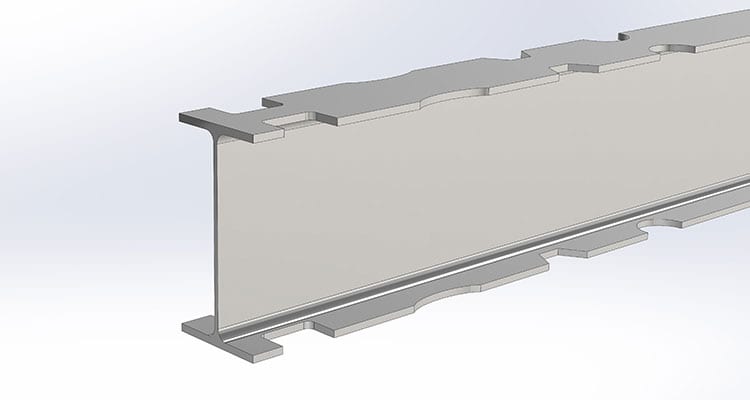

Beam cut outs
To connect a beam to an interesting beam
Beam cut outs
To make room for colliding parts
TECHNICAL DATA
| O | 100x100mm - 600x400mm (3.9x3.9" - 23.6x15.7") | |
| T | 100x50mm - 1100x400mm (3.9x2" - 43.3x15.7") | |
| C | 620x430mm - 1220x430mm (3.7x1" - 48x16.9") | |
| I | 95x55mm - 1220x430mm (3.7x2.2" - 48x16.9") | |
| L | 100x50mm - 1100x400mm (3.9x2" - 43.3x15.7") | |
| L | 75x75mm - 550x550mm (3x3" - 21.7x21.7") | |
| Weight | 12t |
