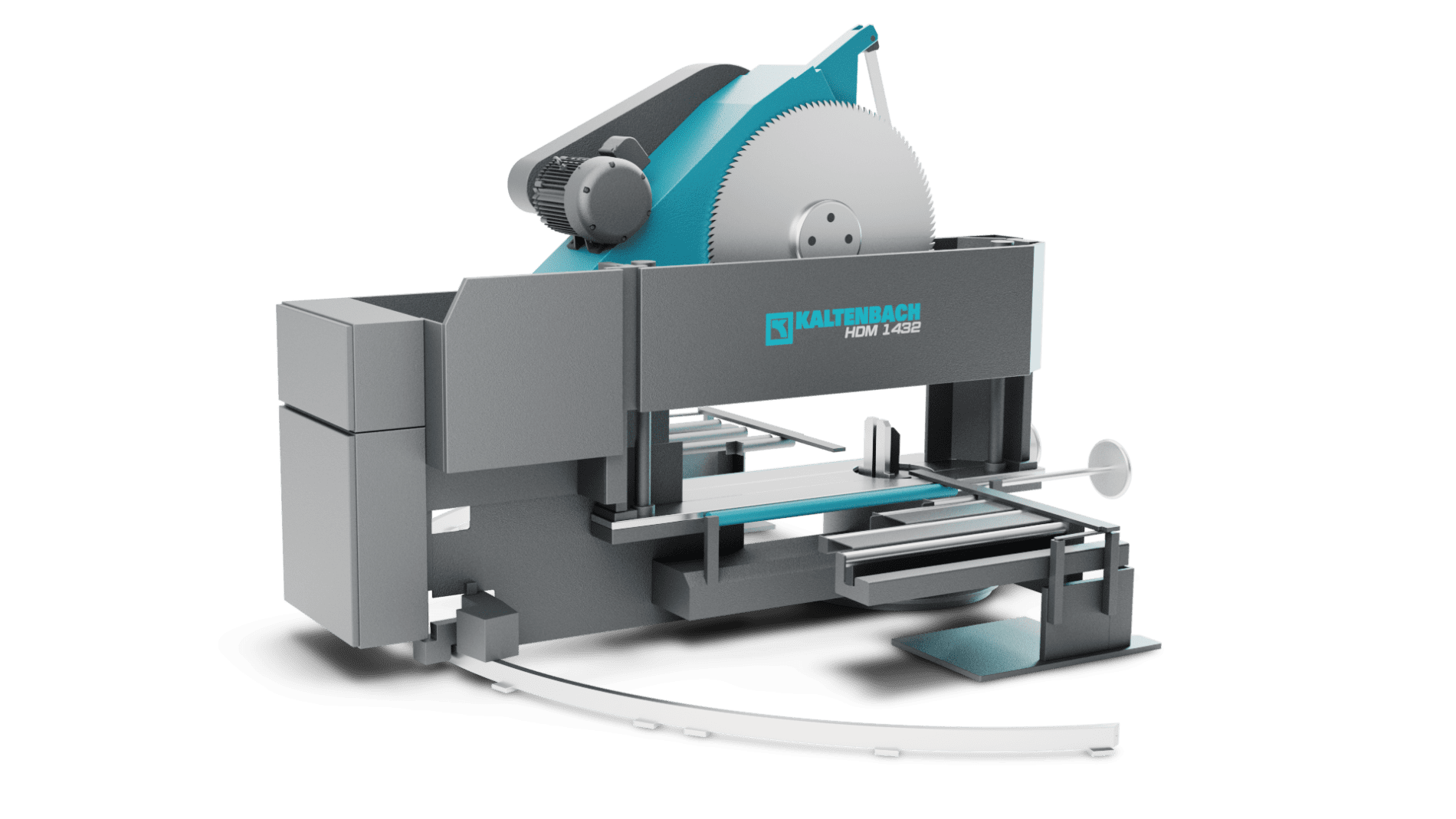

HDM 1432
High performance for heavy steel construction and steel service centers
HDM 1432 BENEFITS AT A GLANCE
- Vertical saw on robust pivot bearing
- Powerful drive for high-performance cutting
- Single cuts in addition to layer and bundle cuts possible
- NC-controlled cutting-angle setting
- A drill can be incorporated to create a saw-drill combination
- Feed via ball screw for perfect cutting results
FEATURES
Quiet operation and constant feed
Infinitely adjustable feed rate on the control console
OPTIFEED for automatic control of saw blade feed and cutting speed
Excellent regulation response through changing material cross-sections
Automatic material clamping
Hydraulic profile clamping within the automatic sawing control
Clamping bridge for precise cuts, even with short cutting lengths
Clamping and sawing of layers and bundles possible
Manual material positioning
Supply rollers attached to the left and right of the saw table
Transport and positioning movement in the sawing area with removable hand wheel
Transport of short profiles
Power driven transport rollers on the infeed and outfeed sides immediately
Short material lengths can also be transported with mitre settings
High performance cutting
High performance cutting and long blade life
Chip remover
Chip remover cleans the saw blade for perfect cutting results and shorter cutting times.
TECHNICAL DATA
| Drive performance | kW | 22 |
| Dimensions (L x W x H) | 4500 x 1600 x 3200 | |
| Weight | kg | approx. 9.500 |
| Supply and discharge side | Sawing | |
| Sawblade | Ø mm | 1.430 x 9,5 |
| Cutting speed | m/min | 8-30 |
| Working Max | mm | 1.200 x 450 |
| Working range Square | mm | 440x440 |
| working range Profile | mm | 440x440 |
| Working range Min | mm | 50x50 |
| Mitre range | -45°/90°/+35° | |
| Tools | HSS-Tools | |
| Material class | automatic outfeed | |
| automatic infeed | ||
| Material class | Steel | |
| Working processes | Layers | |
| Massproduction | ||
| Solid Material | ||
| Profiles |
